Flywheel SFW Seat Leon 1M1 2.8 Cupra 4 AUE BDE 1-mass CNC CrMo steel flywheel 2-disc Clutch 3.1kg 7kg 02M Transmission 6speed NRC FWVW-R32-200-3.8-8.0

"NRC Nolimit Racing Clutches" Flywheel SFW Seat Leon 1M1 2.8 Cupra 4 AUE BDE 1-mass CNC CrMo steel flywheel 2-disc Clutch 3.1kg 7kg 02M Transmission 6speed

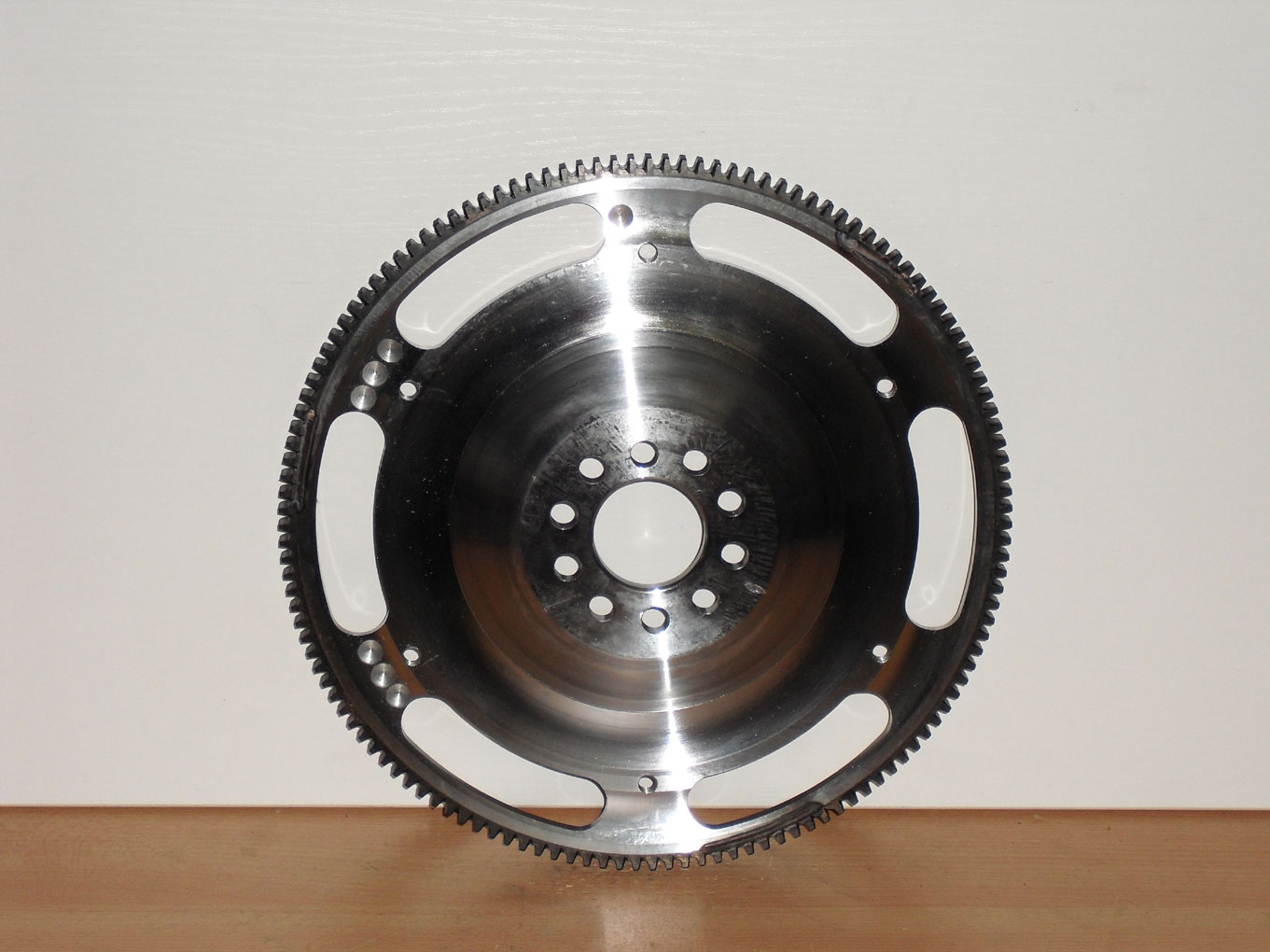

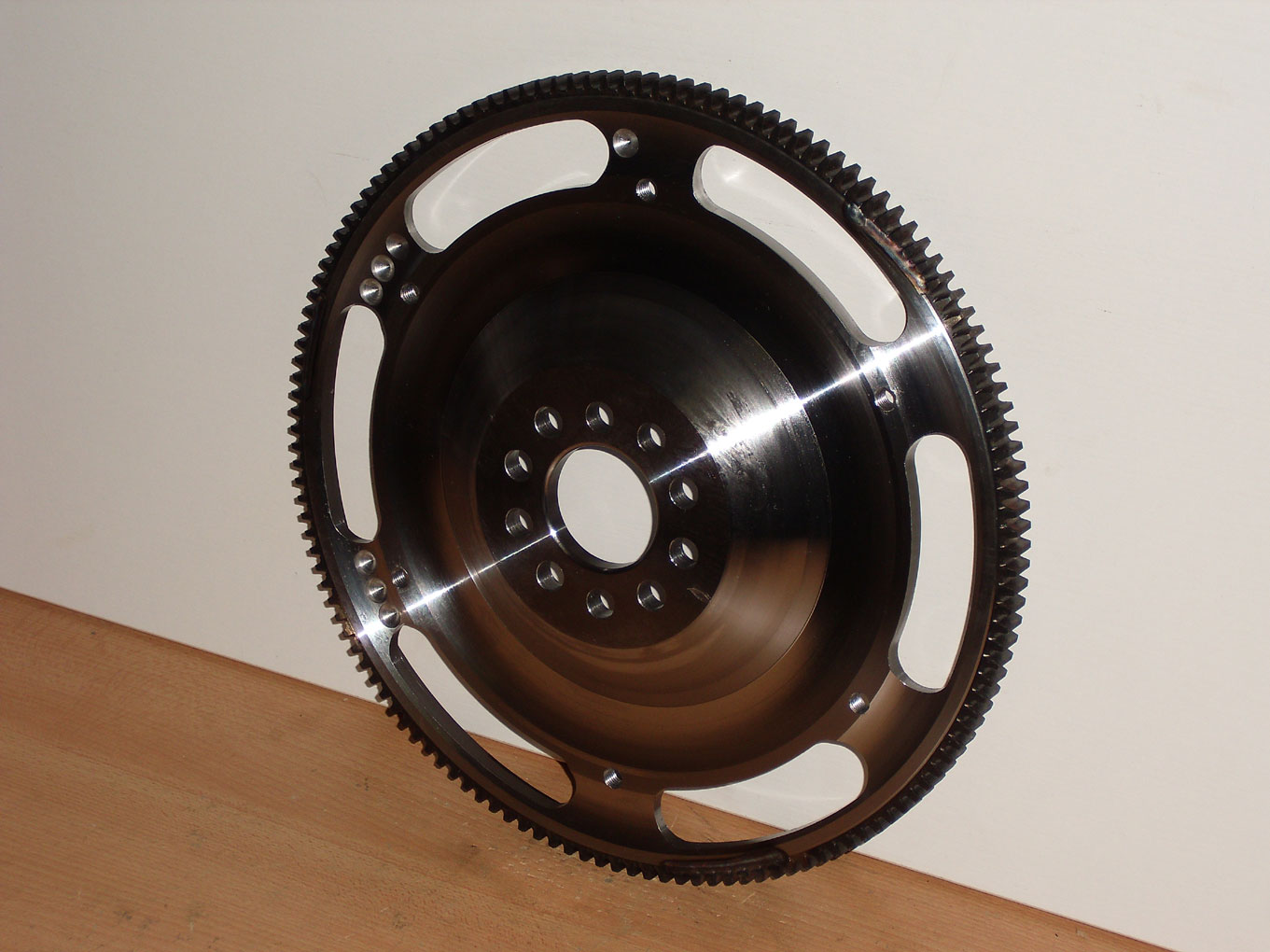

1-Mass Flywheel – completely CNC machined from high-quality tool Steel.

For Multi-Disc Clutch system 200mm.

For use with Sachs Race RCS200 housing 999555 & 999556.

• Some changes were made compared to our first prototypes:
• The friction surface is now closer to the Gearbox, so the 2nd disc sits even more/better on the Gearbox shaft, which guarantees even better power Transmission and minimizes wear on the hub.
• The friction surface itself has become thicker, which means it can absorb more heat and thus protects the Disc on the Flywheel.
• We have removed weight from the edge (now longitudinal slots) and incorporated it into the friction surface, so that the rotating mass is closer to the pivot point of the crankshaft.

Starter ring is shrunk and spot welded.

Flywheel weight: 3.1kg / 7.0kg (see selection menu)

There will also be an approx. 8Kg version and next week the VW VR6 & R32 Turbo 6-speed RCS200 flywheel will be released.

• Technical data:
• Material: Chrommolybdän CrMo Steel
• Friction lining dia: 200mm Sachs RCS200, AP 200mm, Tilton
• Number of mounting holes: 10
• Weight: approx. 3.8kg (original ZMS/DMF VAG R32 approx. 12.0kg)
• dynamically balanced: yes +/-0.5 grams

suitable for the following models / engines
